Samstag, 11. September 2010

HELGE INGSTAD (F 313)

Kiel Tirpitzhafen Scheermole 2010/09/11

New Norwegian Fridtjof Nansen class frigate (F310 type) - 4th of 5 ships
The Fridtjof Nansen class of frigates, for the Royal Norwegian Navy, are a derivative of the Spanish Alvaro de Bazán class of Aegis combat system-equipped air defense frigates. Navantia, Lockheed Martin and the U.S. Navy are conducting final systems integration.

Type: Guided missile destroyer
Displacement: 5,100 tons full load
Length: 133.25m Beam: 16.8m Draft: 4.9m
Propulsion: Combined diesel and gas (CODAG): Two BAZAN BRAVO 12V 4.5 MW diesel engines for cruising; One GE LM2500 21.5 MW gas turbine for high speed running, Speed: 27 knots Range: 4,500nm at 16 knots
Complement:  120, accommodations for 146

HELGE_INGSTAD_001

Donnerstag, 9. September 2010

BRASIL (U 27)

Hamburg Landungsbrücken 2010/09/09

Schoolship of Brazilian Navy
Training frigate similar in design to the Niteroi class
Displacement 3.168to.
L: 131,3m B: 13,5m D: 4,2m
2 diesels, 2 shafts, 7,000 hp, 18 knots
Crew: 224 + 201 Cadets
2 x Bofors 40mm
aft platform for 2 helos

BRASIL_001

BRASIL_002

BRASIL_004

BRASIL_003

Samstag, 4. September 2010

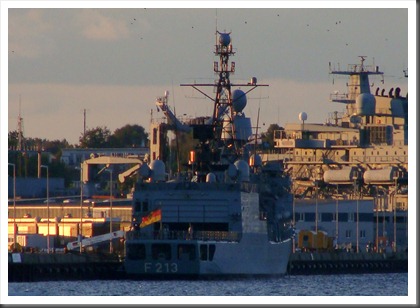

AUGSBURG (F 213)


Kiel Navy port 2010/09/04
Bremen class (Type 122) frigate
German version of the Dutch Kortanear class
Builder: Bremer Vulcan
Launch date: 17 Sept 1987 Commission date: 03 Oct. 1989
Displacement: 3,800 tons full load
Dimensions: 130 x 14.4 x 4.26 meters
Propulsion: 2 shafts: 2 cruise diesels, 10,400 bhp, 18 knots; 2 LM2500 boost turbines, 50,000shp, 30 knots Crew: 200
Aviation: aft helicopter deck and hangar; 2 Lynx helicopters
Armament: 8 Harpoon SSM, 1 8 cell Sea Sparrow SAM (24 missiles total, manual reload), 1 76mm OTO DP, 4 12.75 inch TT, 2 21 cell RAM, 2 20mm



F_213_AUGSBURG_004

F_213_AUGSBURG_003

Donnerstag, 2. September 2010

LANGEOOG (A 1441)

Kiel Marinearsenal 2010/09/02
German navy Class 754/02 ocean going tug
*1968 Schichau, Bremerhaven (Comm. 1968/08/14)
L 51.78m B 12.11 m D 4.18m
Displ. 1,039 t
Dieselelectric 4 x MWM TRHS 518 V 16-31 AE each 441 kW
Generators: 4 x 405 kW
24 Crew plus 33 trainees

A_1441_LANGEOOG_001 A_1441_LANGEOOG_005

BRANDENBURG (F 225)

Kiel Tirpitzhafen 2010/09/02
Type 123 Brandenburg Class frigate
*Aug, 28 1992 Blohm + Voss, Hamburg / Comm.: 1994/10/14
Displacement. tons: 4,900 full load
Dimensions, feet (metres): 455,7 oa; 416.3 wl x 54.8 x 22.3
(138.9; 126.9 x 16.7 x 6.8)
Main machinery: CODOG; 2 GE 7LM2500SA-ML gas turbines; 51,000 hp (38M""1 sustained; 2 MTU 20V 956 TB92 diesels; 11,070 hp(m) (8, 14 MW) sustained; 2 shafts; Escher Weiss; cp props Speed, knots: 29; 18 on diesels. Range, miles: 4,000 at 18 kt Complement: 199 (27 officers) plus 19 aircrew

F_215_BRANDENBURG_008F_215_BRANDENBURG_005 F_215_BRANDENBURG_006F_215_BRANDENBURG_007 F_215_BRANDENBURG_010
