Other Submarines

TANIN

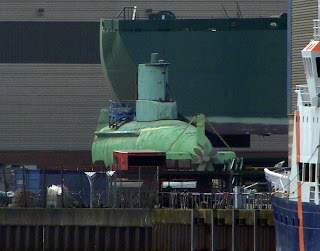

Former Israel owned submarine laid up at Kiel HDW (2008/04/24) yard since some years. Supposed to be part of the new Kiel-Science Center opening in 2011. The Type 540 Gal Class submarine was built in Vickers shipyards at Barrow in Furness in England according to Israeli designs, based on Germany's HDW Type 206 submarine class, for the Israeli Navy.
Tanin - commissioned in June 1977. Sister is RAHAV (also at HDW).
Displacement:600 metric tons submerged, 420 on the surface
Length: 45 m Beam: 4.7m Draught: 3.7m
Machinery: 1 shaft, 2 MTU Diesels & AEG Generators, 1 electric motor Speed: 11 knots on the surface, 17 knots submerged, Crew: 23
Armament:8 - 533mm torpedo tubes, Sub-Harpoon Missiles, NT 37E torpedoes.

ZEELEEUW (S 803)




Kiel Tirpitzhafen (Kiel Week Open Ship) 2009/06/21
Dutch Walrus Class SSK submarine
*1990 Rotterdamse Droogdok Mij, Rotterdam (Comm: 1990/04/25)
Displ.: 2,456to./2,800to dived
L: 67.70m B: 8.40m D. 7.00m
Diesel-electric 4,630kW/5,100kW

S 103
Kiel-HDW Synchrolift 25-06-2007
South-African Submarine (Type 209-1400) built by Thyssen Nordseewerke, Emden in Corporation with HDW. S103 is the third of three newbuildings for Southafrica. She was delivered end of 2007.



NRP ARPAO (S 168)

NRP ARPAO (S 168)

NRP TRIDENTE (S 167)

NRP ARPAO (S 168)

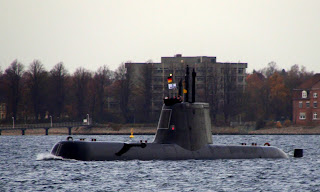

NRP ARPAO returning from trials, Kieler Förde 2009/11/17
New portugese Class Type U-209PN to be delivered by TKMS Kiel to portugese navy in 2010. The new submarine has a combined diesel-electric and fuel cell propulsion system. Equipped with ultra-modern sensors and an integrated Command and Weapon Control System, it is optimally suited to its future reconnaissance and surveillance tasks. The contract for the two submarines was signed in 2004 between the Portuguese State and the German Submarine Consortium (GSC).
Length overall approx. 68m, Height approx. 13 m
Displacement approx. 1,850 t, Complement 32

PAPANIKOLIS (S120)

Greek submarine HDW-Type 214 Multi Purpose Submarine, Improved export version of Type 212 submarine
Displacement: 1,700 t (surfaced)
Length: 65.0m Beam: 6.3m Draught: 6.0m
Diesel engines: 2 MTU 16V 396 (6.24 MW)
AIP system: 2 HDW PEM fuel cells (240 kW)
Speed: 12 kt surfaced 20 kt submerged
Range: 12,000 miles surfaced
Complement: 5 officers + 22 crew
Armament: (8) 533 mm torpedo tubes, (4) Sub-Harpoon-capable

PAPANIKOLIS (S 120)

PAPANIKOLIS (S 120)

PAPANIKOLIS (S 120)
